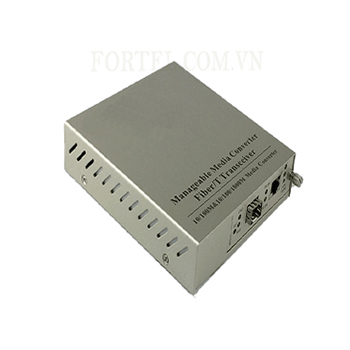

Bộ chuyển đổi quang điện 10/100/1000 Mbps tích hợp tính năng quản lý và giám sát AN-M-Series
10/100M、10/100/1000M IEEE802.3ah OAM manageable ethernet fiber media converter can supervise the real time situation of remote manageable fiber media converter and set the functions. With this system, the response speed of the operator is quickened, the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.
Description
Standalone Managed Fiber Optic Media Converter ( IEEE802.3ah OAM compliant) 10/100/1000M can supervise the real time situation of remote manageable fiber media converter and set the functions. With this system, the response speed of the operator is quickened, the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.
- Built-in IP-based Web Interface
- Supporting remote and local management
- Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode
- Store and Forward mechanism
- Manual IP address setting/DHCP client for IP address assignment
- SNMP Trap function
- Event trap and SNMP trap support
- Speed duplex mode configuration / Flow Control setting / bandwidth
- Control on TP / Fiber port
- Supports Port Status / Ethernet Statistics on both TP and Fiber intertace
- Supports Maximum frame size to 9K bytes
- Loop detection / Broadcast / Multicast / Unicast storm control
- Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
- 802.1p Tag Priority / IP address priority / IP DSCP option in
- Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR)
- QoS policies
- TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
- 16 TCP / UDP Filter groups
- Password setting, IP setting and devices description setting through Planet
- Smart discovery utility
- Firmware upgrade via remote Web interface
- LED indicators for easy network diagnosing
- Reset Button at the front panel for the factory default reset
- Choice of fiber-connector from SC, LC, WDM, multi-mode /
- Single-mode fiber /1000Base-SX / LX mini GBIC module
| Performance | One TO One Manageable |
| Ethernet Interface | |
| Meet standards | IEEE802.3,IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x |
| Data rate: | 10Mbps, 100Mbps, 1000M half/full duplex auto-sensing |
| Connector | RJ-45 |
| Fiber port Interface | |
| Connector | ST, SC, FC.LC |
| Operating wavelength: | 850nm, 1310nm at Multi-mode; 1310nm,1550nm at single mode. |
| Optical fibers: | Multi-mode: 50/125，62.5/125，100/140um; Single-mode: 8.3/125,8.7/125,9/125,10/125um |
| Basic working environment | |
| Transmission Distance | Dual fiber: up to 100km Single fiber: up to 80km |
| power requirement | Power supply: 85VAC~265VAC or -40VDC~-57VDC Power consumption: ≤5W |
| Work Environment | Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% （ non-condensing ） |
| Dimension | Standalone ： 156mm ( W ) ×128mm ( D ) ×32mm ( H ) |
