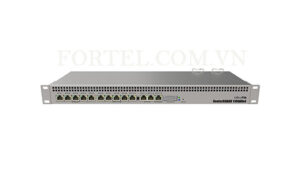

The new RB1100AHx4 series of devices uses a new quad core Cortex A15 chip from Annapurna labs,
an Amazon company, The chip is clocked at 1.4 GHz, for a maximum throughput of up to 7.5 Gbit.
Two models are available, with the RB1100AHx4 Dude edition featuring several high speed storage
connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage
intensive feature. The Dude edition includes a 60 GB M.2 drive already installed.
The devices support IPsec hardware acceleration and are faster at it than any previous RouterBOARD
device.
The RB1100AHx4 feature two IEC failover power connectors, support 802.3at PoE input and also
have a DC telecom power connector for -48 V DC powering.
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
13 |
Powering
| Details |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Number of DC inputs |
2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage |
-48, 12-57 V |
| Max power consumption |
20 W |
| FAN count |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
20-57 V |
Peripherals
| Details |
| Memory card type |
microSD |
| Memory Cards |
1 |
| Serial console port |
RS232 |
Other
| Details |
| Current Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Mode button |
Yes |
| Details |
| Product code |
RB1100x4 |
| Architecture |
ARM 32bit |
| CPU |
AL21400 |
| CPU core count |
4 |
| CPU nominal frequency |
1.4 GHz |
| Dimensions |
443 x 148 x 44 mm |
| RouterOS license |
6 |
| Operating System |
RouterOS |
| Size of RAM |
1 GB |
| Storage size |
128 MB |
| Storage type |
NAND |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| IPsec hardware acceleration |
Yes |
